GTQ-BS03

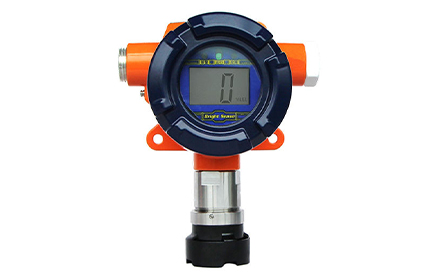

GTQ-BS03 Combustible Gas Toxic Gas Pointed Type Fixed Gas Detector

Measuring gas
Combustible gas, toxic gas, O2, VOC, CO2, Freon
Sample method
Diffuse naturally
Power
DC24V±6V, ≤3.0W
Response time
LEL: T90≤15s Toxic gas: T90≤30s VOC/CO2/Freon≤15S
Electrical output
4-20mA or PBUS
Relays
2 free contact, 1 active relay
Operation by
IR remote control
Parameter Download
Inquiry Send Email
OEM & ODM Fixed Gas Detector Products since 1998.
Brief Introduction:
Product Description Our fixed gas detector installed in a place where potential gas hazard exists to measure oxygen, toxic gas and combustible gas. It shows not only the concentration of gas but also diagnostic result of the unit itself through the LED screen and LED lights and can be connected to the control panel with a standard 4-20mA analog output.

Specification

Measuring gas
Combustible gas, toxic gas, O2, VOC, CO2, Freon
Sample method
Diffuse naturally
Power
DC24V±6V, ≤3.0W
Response time
LEL: T90≤15s Toxic gas: T90≤30s VOC/CO2/Freon≤15S
Electrical output
4-20mA or PBUS
Relays
2 free contact, 1 active relay
Operation by
IR remote control
State indication
Yellow--Fault, Red--Alarm, Green--Power
Operating temperature
LEL: -40～70℃ Toxic: -20～50℃
Humidity
≤95%RH (no condensation)
Ambient pressure
86KPa～106KPa
Ex grade
II 2 G Ex db IIC T6/T5 Gb II 2 D Ex tb IIIC T80℃/T95℃ Db
Ingress protection
IP66/67
Enclosure material
Aluminum alloy (optional stainless steel)
Cable entry
NPT3/4
Dimensions
130mm x 154mm x 95mm
Weight
About 1.2kg (4.5kg for stainless steel)
