E1000

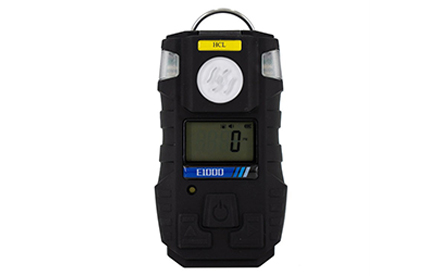

E1000 is a rechargeable single gas detector and is suitable for monitoring the gas concentration of flammable gas, O2 and toxic gases in the environment. It measures a gas continuously and displays its concentration and raises an alarm when a risk occurs. By adopting smart sensor module, it’s easy for replacement and maintenance by the user himself.
Measuring type
Diffuse naturally
Response time
T90<30s
Display
LCD screen
Audible
≥85dB at 1m
Alarm method
Visual, audible and vibrative signals
Battery
DC3.7V 1800mAh Lithium battery
Charging time
4-6h
Operating time
≥8h
Event log
10000 events
Working temperature
Toxic gases: -20℃～50℃ Combustible: -40℃～70℃
Working humidity
<95%RH (no condensation)
Housing
Rubber enclosure
Standard accessories
Operation manual, calibration cap, charger, screwdriver
Optional function
Data upload through USB cable
Dimension & weight
108×61×36mm, about 190g
Ex grade
Ex ib IIC T4
Ingress protection
IP66
Parameter Download
Inquiry Send Email
Features Interchangeable smart sensor module Intrinsically safe Visual, audible and vibrative alarm Adjustable alarm levels and span calibration value STEL and TWA alarm for toxic gases Password management Real-time clock Self-test after power on Self-diagonstic and self-correction function
Application Oil and gas industries, Power plants, Petrochemical plant, Steelworks, Refinery, Marine, Mine, Sewage treatment plant, Confined spaces, Labs etc.

Specifications

Measuring gas
O2
CO
H2S
Combustible
Measuring range
0-25%VOL
0-500ppm
0-100ppm
0-100%LEL
Sensor type
Electrochemical
Electrochemical
Electrochemical
Catalytic
Measuring type
Diffuse naturally
Response time
T90<30s
Display
LCD screen
Audible
≥85dB at 1m
Alarm method
Visual, audible and vibrative signals
Battery
DC3.7V 1800mAh Lithium battery
Charging time
4-6h
Operating time
≥8h
Event log
10000 events
Working temperature
Toxic gases: -20℃～50℃ Combustible: -40℃～70℃
Working humidity
<95%RH (no condensation)
Housing
Rubber enclosure
Standard accessories
Operation manual, calibration cap, charger, screwdriver
Optional function
Data upload through USB cable
Dimension & weight
108×61×36mm, about 190g
Ex grade
Ex ib IIC T4
Ingress protection
IP66
