AT7600

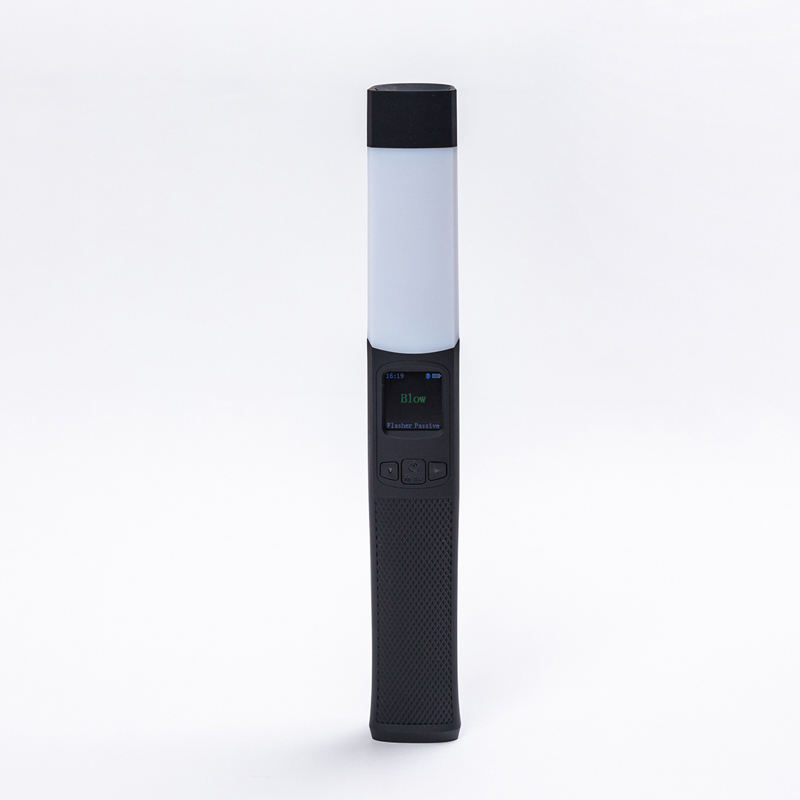

AT7200-R using advanced fuel cell sensor, to provide fast screening of alcohol concentration in people’s breath. No need of mouthpiece, quite save time and cost. Mainly used in mine industry, transportation industry, etc.
|
Model |
AT7200-R |
|
Sensor |
Platinum Fuel Cell |
|
Measuring range |
0～2.000mg/L |
|
Consecutive Working |
Around 2000 times |
|
Dimension |
293mm*413mm*407mm(L*W*H) |
|
Weight |
600g |
|
Calibration |
180 days |
|
Response time |
Less 1 second |
|
Preheating time |
Within 10 seconds |
|
Power |
Rechargeable lithium battery |
Features
Professional-Grade Fuel Cell Sensor: Ensures high accuracy, long-term stability, and reliable BAC (Blood Alcohol Concentration) readings—ideal for law enforcement, workplace safety, and traffic checkpoints.
● Dual Testing Mode: Supports both active testing (operator-controlled) and passive testing (suspect-initiated), enhancing flexibility and safety in real-world scenarios.
● Smart Connectivity & Data Management: Bluetooth-enabled for optional wireless printer pairing; supports data uploading to computers for recordkeeping, compliance, and reporting.
● Modern Rechargeable Power Solution: Equipped with a USB Type-C port for fast, convenient charging and extended field use. Includes low-voltage warning to prevent unexpected shutdowns.
● Clear Color LCD Display: 128 x 128 pixel color matrix screen provides easy-to-read results and interface navigation in various lighting conditions.
● Integrated Traffic Baton & LED Light: Built-in signaling baton and bright LED light for enhanced visibility during nighttime or roadside operations—perfect for traffic control and DUI checkpoints.
● Rapid Performance: Fast warm-up, instant response, and quick recovery time between tests—maximizes efficiency during high-volume screenings.
● Hygienic & Eco-Friendly Design: No mouthpiece required—reduces waste, eliminates cross-contamination risks, and supports environmental sustainability.
● Customizable Settings: Adjustable blow time, alarm threshold, and measurement units (BAC/BrAC, %, mg/L) to meet diverse regional and operational requirements.
● Multilingual Support: User-friendly interface with language options: English, Spanish, Portuguese, and Polish—ideal for multi-language teams and diverse communities.
Features
Fuel Cell sensor, Active Test
LCD Color 128 x 128 Matrix Display
32-bit MCU
Test Result Printed and Uploading to Computer
Traffic Baton with White and Red Lighting Indication
Real Time and Temperature Indication
Under Voltage Remind
Choice of Units-mg/l, mg/100ml, %BAC, ‰BAC, g/l
Fast Warming Up, Response and Recovery
No Mouthpiece Needed, Environmental and Hygiene Friendly
